Heavy-Duty Bulk Bag-Filling Station Handles Abrasive Zircon and Rutile

HENDERSON, WESTERN AUSTRALIA — Tronox Western Australia operates the world's largest fully integrated titanium ore and titanium dioxide (TiO2) project, covering the spectrum from mining of mineral sands through extraction and upgrading to obtain TiO2 pigment. The project is also a major producer of the mineral zircon (zirconium silicate), which is also obtained from the mineral sands.

The chief products at Tronox's Western Australian operations are rutile (TiO2) and zircon (ZrSiO4), which ultimately are loaded into bulk bags at Tronox's Henderson shipping facility and transported in shipping containers to nearby Fremantle, Western Australia's largest and busiest cargo port — for export and domestic use.

The loading of bulk bags over the years had become a bottleneck, but has been remedied by a special bulk bag filling station from Flexicon Corporation Australia.

Tronox's Western Australian operations start with the mining of mineral sands, which are gravity-separated at the mine to obtain a wet concentrate that is rich in the desired minerals: rutile (high-grade Ti mineral), ilmenite (FeTiO3, lower-grade Ti mineral), and zircon. The minerals are separated and recovered by magnetic and electrostatic processes at the company's Chandala dry separation process plant in Muchea. Ilmenite is further refined in a reduction kiln to remove iron and ultimately produce synthetic rutile.

The granular zircon and rutile are brought to the company's shipping facility in Henderson in tipper trucks, which empty their loads onto the concrete floors of large storage sheds. From there, the product is loaded into bulk bags.

The bagging operation was largely a manual process in which a forklift truck held the bag while a second forklift truck held a V-shaped funnel (or hopper) over the bag and a front end loader dropped the ore through the funnel into the bag. When the bag was nearly full it was weighed and the rest of the material was added by hand.

Tronox dramatically improved its bulk bag filling with a heavy-duty skid-mounted mobile bulk bag filling station that integrates an 88 cu ft (2.5 cu m) capacity hopper, a 15 ft (4.5 m) long steel tube screw conveyor, and a Twin-Centerpost™ bulk bag filler.

Nicknamed "Rhonda" at the Henderson facility, the bulk bag filling station stands 11 ft (3.3 m) at its highest point and is 12 ft (3.6 m) long. It was engineered and supplied by Flexicon (Australia) Pty Limited (Wacol, Queensland), a subsidiary of Flexicon Corp. (Bethlehem, Pennsylvania, USA). The unit doubles output per operator over the former method, while improving health and safety since filling is enclosed and essentially dust-free, according to the company.

Formerly, three employees filled about 80 bags in a 10-hour day. Currently, two employees fill about 90 bags in an 8-hour day.

Filling bags: a heavyweight operation

The Flexicon Twin-Centerpost™ design with two on-center posts maximizes strength, which is essential since the unit must fill material of differing weights — 2,200 lb (1,000 kg), 3,850 lb (1,750 kg) and 4,400 lb (2,000 kg). The basic design consists of two steel posts, which support a fill head and pneumatically-retractable hooks on which the bag hangs. Enclosing the bulk bag filler and supporting the 15 ft (4.5 m) long tubular conveyor is the station's heavy-duty outer frame.

The bulk bag filling station moves between the zircon- and rutile-filling operations, which are located approximately 875 yards (800 meters) apart. Due to its relatively small footprint, the skid-mounted system can be moved using a three ton forklift.

Nevertheless, the capacious hopper can hold 7 - 8 tons (6.4 - 7.3 mt) of zircon or 5 - 6 (4.5 - 5.4 mt) tons of rutile, in granular form. During filling, the front end loader empties material into the hopper while the conveyor draws the material from the inlet at the bottom of the hopper and transports it 15 ft (4.5 m) at an incline of 40° before it gravity feeds through the conveyor outlet, transition adapter and telescoping steel downspout into the bulk bag.


Tubular screw conveyor meets heavy-duty mining specs

The conveyor consists of a rugged steel screw that rotates within an 8.7 in. dia (220 mm) steel tube. Since both the rutile and zircon are abrasive, the screw is made of a thick stainless steel conveyor spiral designed to heavy-duty mining specifications. The high-capacity screw automatically self-centers within the tube, allowing a 100% fill percentage. The throughput capacity of the conveyor is 706 cu ft/h (20 cu m/h), and can fill a 2 ton (1.8 mt) bag with zircon in approximately 1-1/2 minutes.

Powering the screw is a 20 hp (15 kW) variable speed electric motor. The top-driven design of the conveyor allows the abrasive material to exit the conveyor without contacting and wearing bearings or seals.

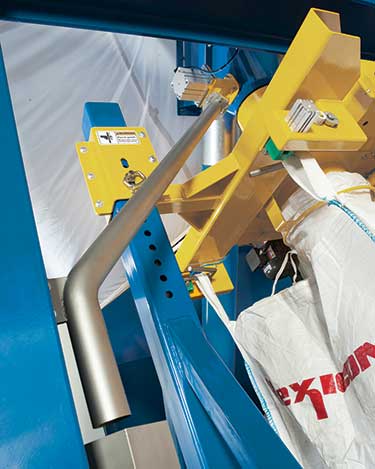

At the start of a filling operation the operator secures the bag's four corner loops to the pneumatically retractable hooks. Next, the bulk bag inlet spout is positioned over an inflatable collar which holds the spout in place and provides a dust-tight seal during the filling process. The fill head incorporates a dual-concentric tube design which delivers product to the bag via the inner tube, and allows displaced air to exit the bag through the outer tube.

A programmable logic controller (PLC) governs the filling operation. The operator pre-sets the bag weight, then starts the conveyor. The conveyor speed slows when the bag is almost full and stops when the bag reaches the desired weight. Tracking the weight are four load cells, located under the steel deck supporting the filler.

A small piston valve at the transition adapter draws samples to check quality of the material being bagged.

After filling, a forklift truck takes each filled bag to a storage area prior to shipment. Most of the zircon and rutile products find their way into ceramic glazes, special glasses, refractory furnace linings, and pigments.

Click to enlarge

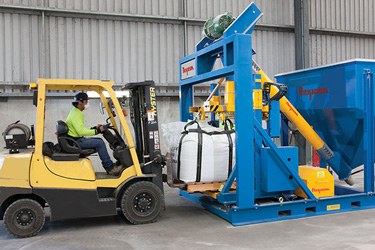

Skid-mounted mobile bulk bag filling station, nicknamed 'Rhonda' at the Tronox Henderson facility, consists of an 88 cu ft (2.5. cu m) capacity hopper, a 15 ft (4.5 m) long tubular screw conveyor, a Twin-Centerpost™ bulk bag filler, and PLC control.


Click to enlarge

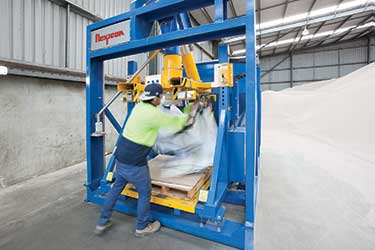

Pneumatically-retractable bag hooks hold the four corners of the bag.


Click to enlarge


Click to enlarge


Click to enlarge

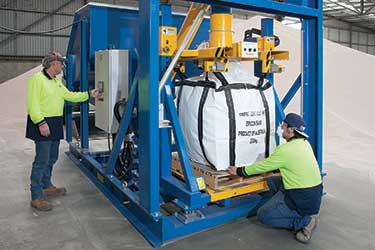

One operator attaches bag to the fill head as other operator pre-sets the bag weight and initiates filling at the PLC. The Twin-Centerpost™ design filler frame and heavy-duty outer frame impart strength for filling bags weighing between 2,200 to 4,400 lb (1,000 to 2,000 kg).


Click to enlarge

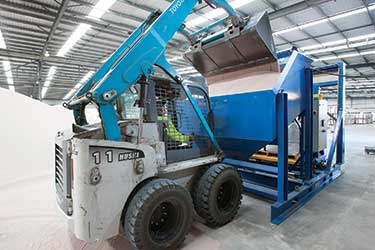

The 88 cu ft (2.5. cu m) capacity hopper can hold 7 - 8 tons (6.4 - 7.3 mt) of zircon or 5 - 6 tons (4.5 - 5.4 mt) or rutile.


Click to enlarge


Click to enlarge

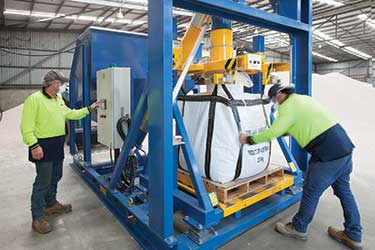

The special heavy-duty bulk bag filler doubles output per operator over former manual methods, and improves health and safety as filling is enclosed and dust-free.


Click to enlarge

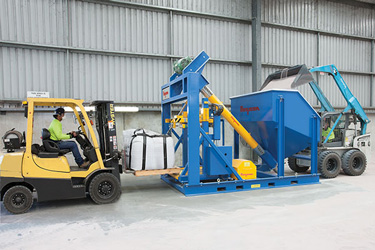

Tronox Western Australia semiautomatically fills and ships bulk bags of rutile (titanium dioxide) and zircon (zirconium silicate), which are mined and processed from native mineral sands.
